Rapid Case Kicker® for the RCBS Rebel Press

What makes the Case Kicker® Different? We spent a lot of time trying to improve our design and make it better and we don't merely copy others.

  • Click here to go to Installation Instructions Below
    • Rapid Case Kicker and Speed Chute
    Press Type

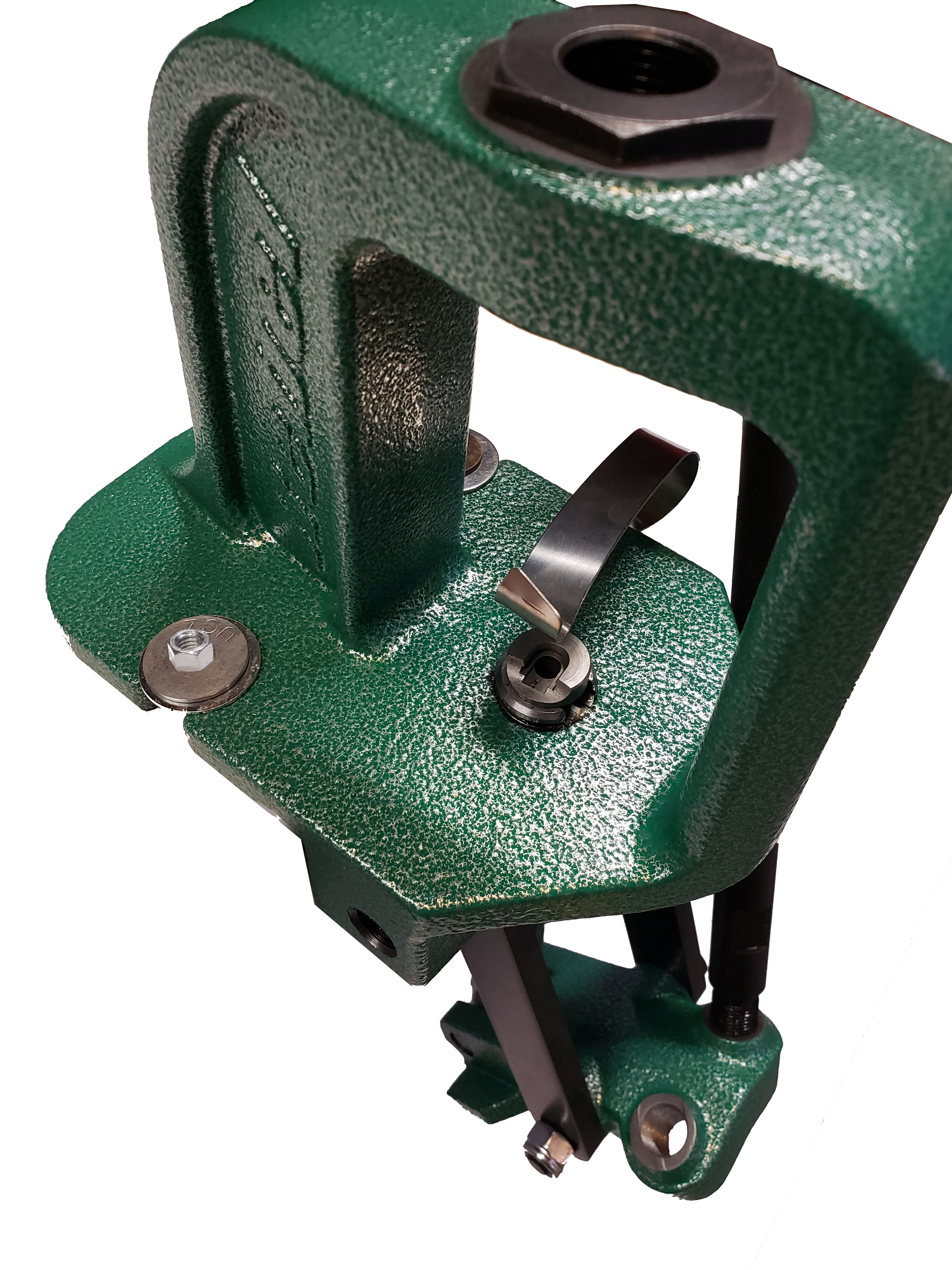

    Case Kicker Installed. Instructions Below

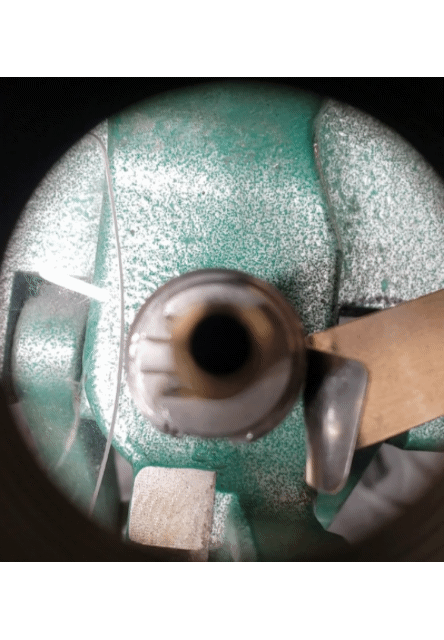

    The Case Kicker in Action

    Purchase From Amazon

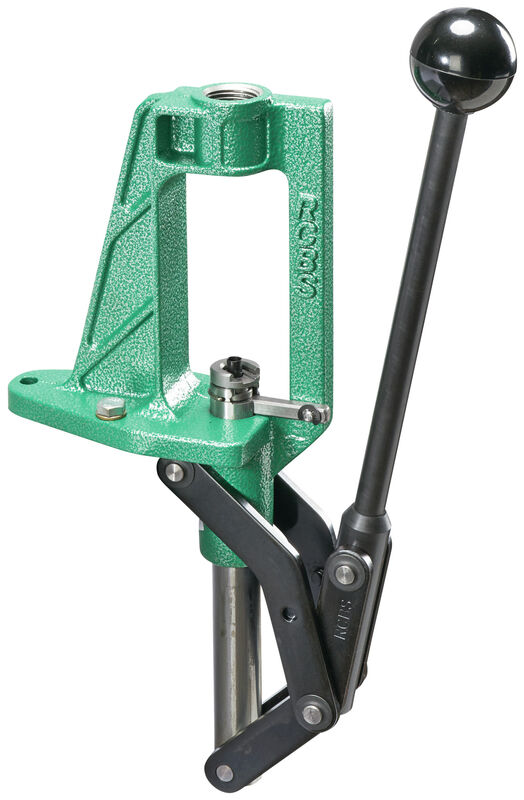

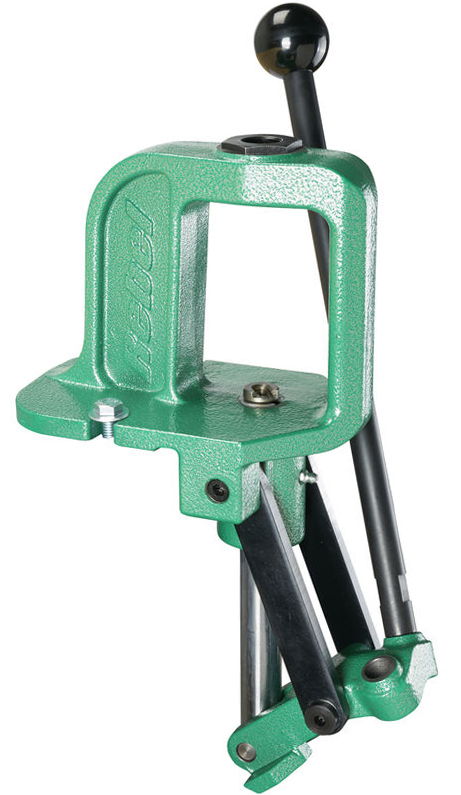

    Purchase the RCBS Rebel Press

Please Follow all the Instructions Below for Best Performance

The mounting for all of our Case Kickers that go under the press mount the same and the following instructions will give you a good idea on how to mount it on any press.

HTML Ordered List
  1. The Case Kicker Requires no additional space to mount your press.

  2. The Case Kicker requires no additional mounting hardware.

  3. The Speed Chute requires only one screw to mount to your bench

It's that simple.

Once you have mounted your press loosen the two main bolts that are holding your press to the bench.

The Case Kicker has an angled main radius preventing press and case ejector interference under the press, preventing a decreased life expectancy and inconsistent operation of the case ejector and the press components.

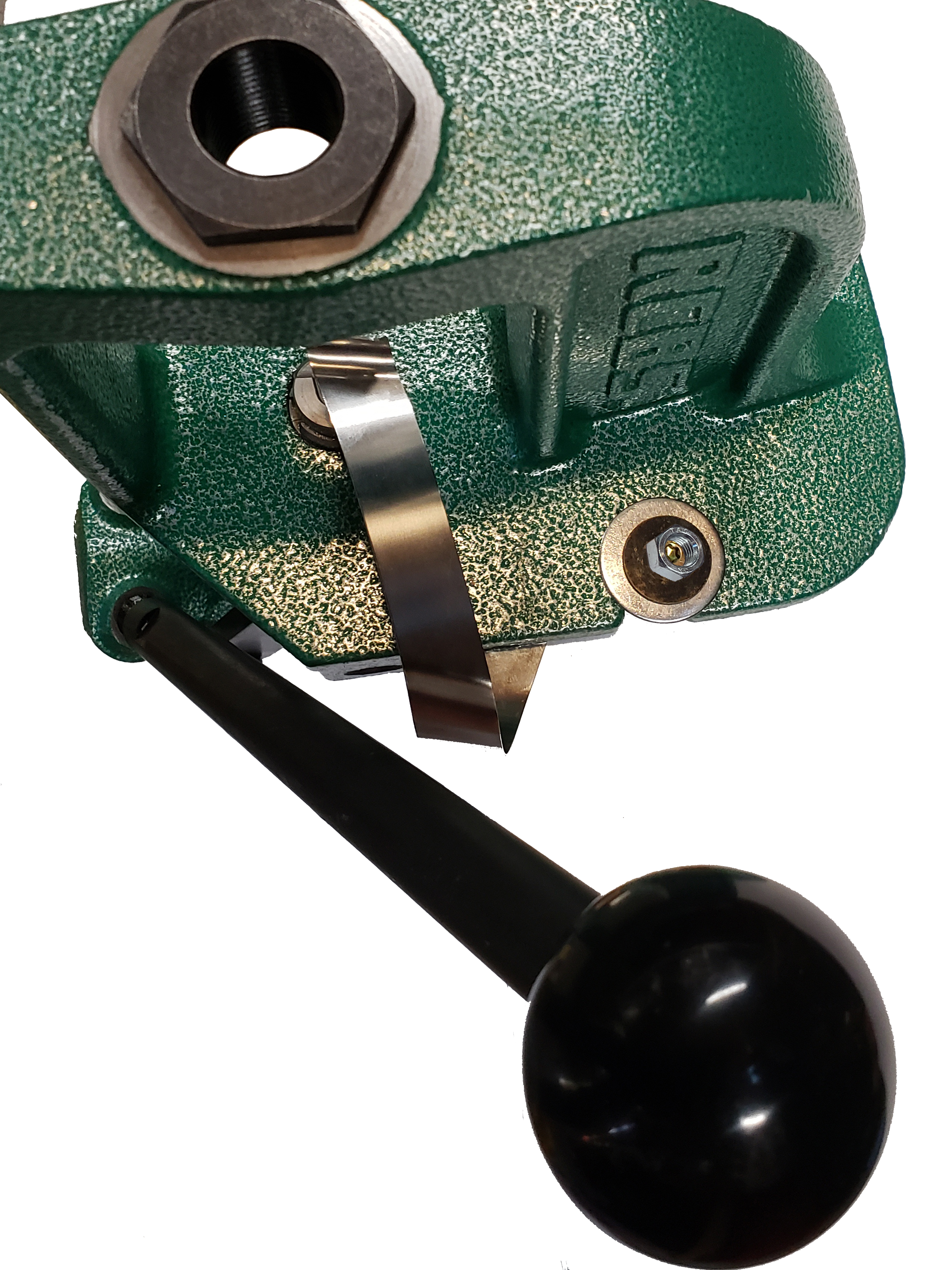

Slide the Case Kicker under the press as shown.

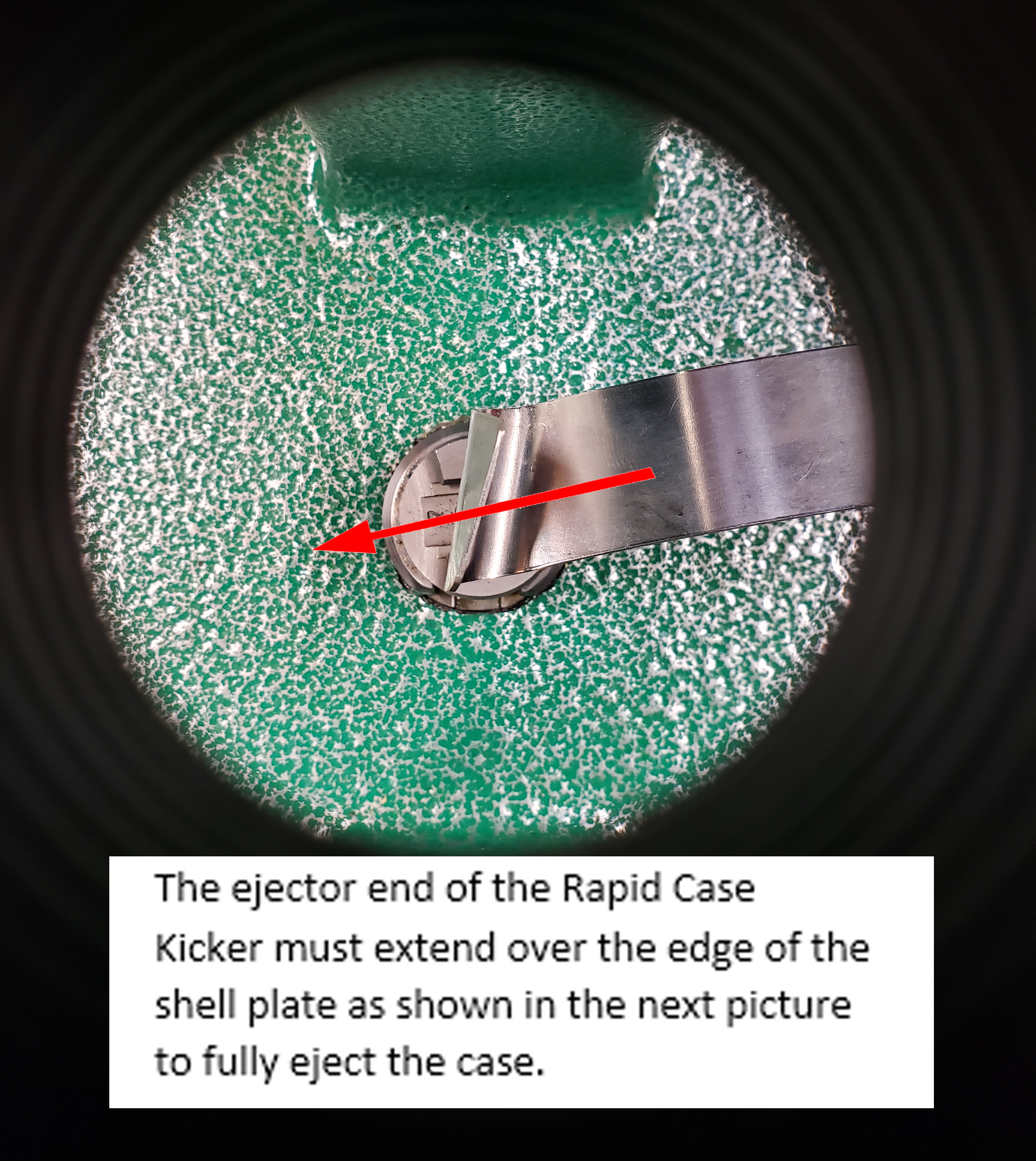

Adjust the Case Kicker to cover the shell plate that is angled toward the left.

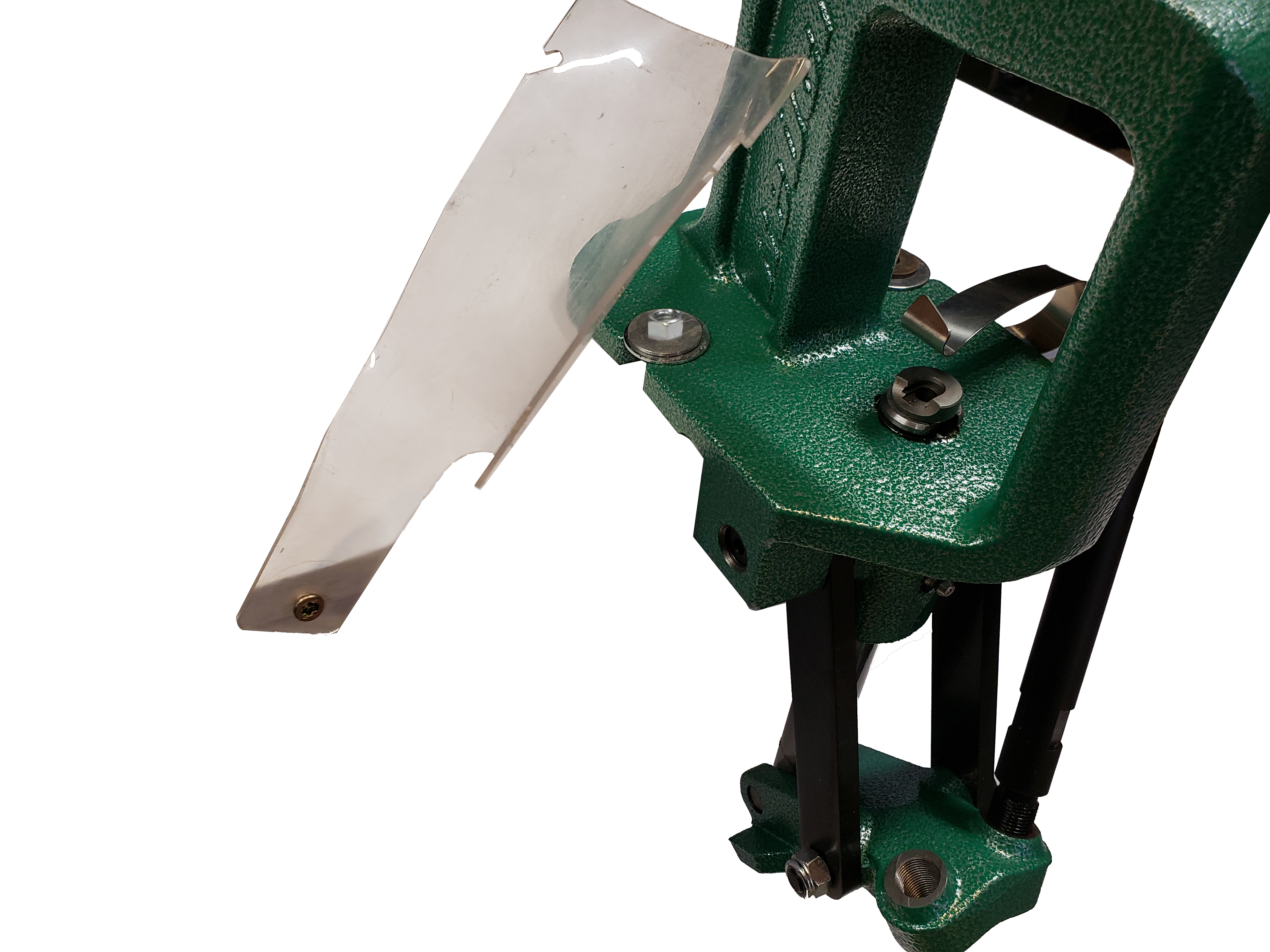

Next take the Speed Chute and place it so it is angled down as shown.

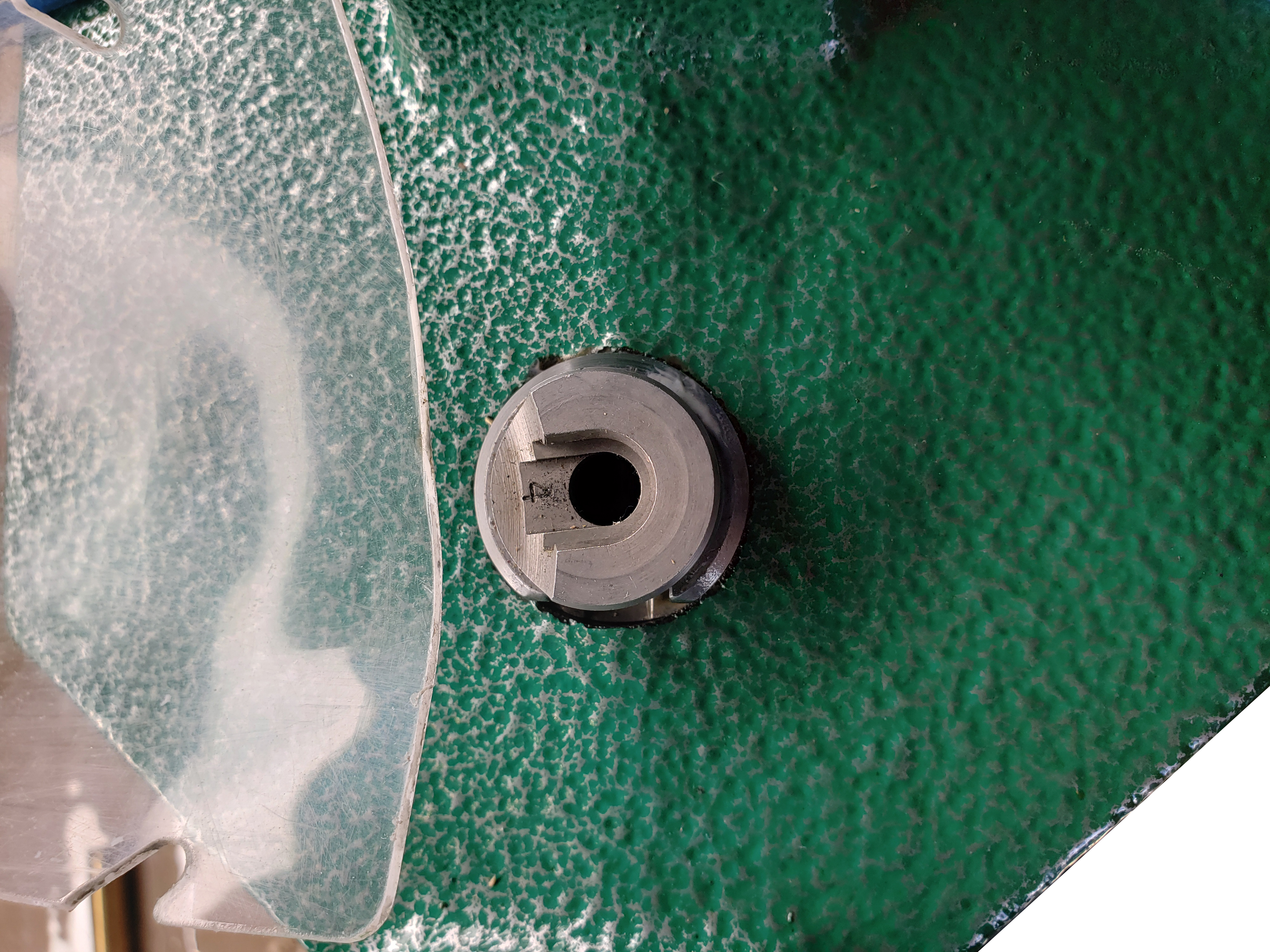

The end of the Speed Chute should not interfere with or touch the press piston. Approximately the size of one large rifle primer diameter

The end of the Speed Chute should not interfere with or touch the press piston. Approximately the size of one large rifle primer diameter

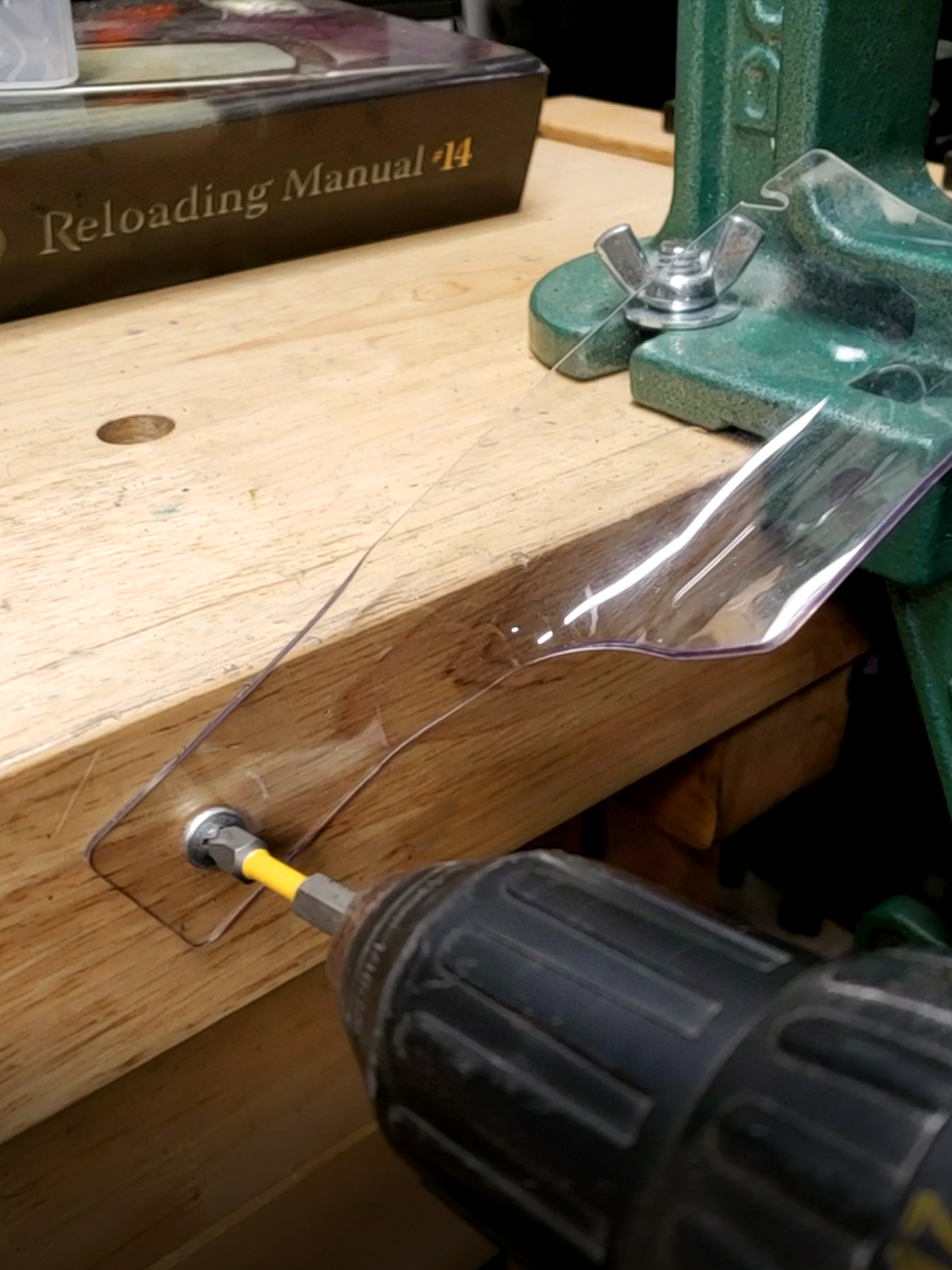

Hold the Speed Chute in place to ensure it will eject brass properly. Then attach the chute to your bench. Because of the multiple surfaces you can attach your press, we don't provide a screw to avoid giving you a wood screw but you have a metal bench, we hope you understand.

The Speed Chute should be able to rotate up in the event you need to service your press.

Rotate into position and...

RELOAD!
